Origin Sliding Doors in Buckinghamshire & Berkshire
Origin's in-line aluminium sliding doors, led by the OS-29+: a 29 mm interlock, panels up to 2,620 mm tall, flush stacking, U-values as low as 0.78 W/m²K and PAS 24:2022 security. We survey, supply and install the full Origin sliding range across Buckinghamshire, Berkshire, Oxfordshire, Surrey, Hampshire, Hertfordshire and West London.
Origin Sliding at a Glance
Systems
OS-29+ · OS-29 · OS-44 · OS-77
Slimmest Origin interlock
29 mm on the OS-29+ and OS-29
Best U-value
0.78 W/m²K (OS-29+, triple glazed)
Security
PAS 24:2022 on the OS-29+
The Four Origin Sliding Systems
OS-29+, the flagship
A 29 mm interlock where the sliding panels meet, so a closed set reads as near-uninterrupted glass. Sashes up to 2,200 mm wide and 2,620 mm tall, sets up to 13,166 mm across six panels, and a whole-door U-value as low as 0.78 W/m²K with triple glazing. Tested to PAS 24:2022. The OS-29+ is the only Origin slider with a flush-stacking option and an outward-facing lead door. Our first recommendation for most rear extensions.
OS-29, the established 29 mm slider
The same 29 mm interlock in a shallower 143 mm frame, with a 28 mm glass unit and PAS 24:2016 certification. Sashes up to 2,200 × 2,520 mm. A strong choice where the opening is within its height range and the slimmer frame depth suits the build-up.
OS-44, the 44 mm slider
A 44 mm interlock with 28, 32 or 36 mm glass units and sashes up to 2,000 × 2,520 mm. The OS-44 is not PAS 24 rated, so where security certification matters to you or your insurer we specify the OS-29+ or the OS-77 instead.
OS-77, the widest Origin interlock
A 77 mm interlock that gives a more pronounced, framed look, dry glazed with 28, 32 or 36 mm units. PAS 24:2016 certified when fitted with a P1A laminated glass unit, which we specify whenever you need the certified configuration.
Origin Sliding Doors Compared
Origin's own figures for each sliding system, side by side, so you can see what changes between the 29, 44 and 77 mm interlocks before you decide.
| Specification | OS-29+ | OS-29 | OS-44 | OS-77 |
|---|---|---|---|---|
| Interlock sightline | 29 mm | 29 mm | 44 mm | 77 mm |
| Central locking stile | 156 mm | 153 mm | 153 mm | 153 mm |
| Frame depth (double / triple track) | 167 / 249 mm | 143 / 213 mm | 143 / 213 mm | 143 / 213 mm |
| Maximum frame height | 2,700 mm | 2,600 mm | 2,600 mm | 2,600 mm |
| Maximum sash (width × height) | 2,200 × 2,620 mm | 2,200 × 2,520 mm | 2,000 × 2,520 mm | 2,000 × 2,520 mm |
| Maximum set width (six sashes) | 13,166 mm | 12,000 mm | 11,803 mm | 11,803 mm |
| Sashes per set | 2 to 6 | 2 to 6 | 2 to 6 | 2 to 6 |
| Glass unit | 28 or 44 mm, double or triple | 28 mm | 28, 32 or 36 mm | 28, 32 or 36 mm |
| Best whole-door U-value | 0.78 W/m²K | 1.4 W/m²K | 1.3 W/m²K | 1.3 W/m²K |
| Security | PAS 24:2022 | PAS 24:2016 | Not PAS 24 rated | PAS 24:2016 (with P1A laminated glass) |
| Flush stacking | Yes, optional | No | No | No |
| Operation | In-line sliding | In-line sliding | In-line sliding | In-line sliding |
Source: Origin technical documents (OS-29+ cheat sheet and spec guide 2025 to 2026; OS-29/44/77 specification guide). Set widths are Origin's guide figures and depend on sash height and area. U-values depend on the glass unit specified. Maximum sash weight is 200 kg on each system. Final sizes and specification are confirmed at survey.
Choosing a Sliding Door
Comparing Origin with other systems, or still deciding between sliding, bifold and French doors? These guides and pages answer the questions we hear most at survey.
Aluminium sliding doors
Every sliding system we supply and install, from Origin, Cortizo and Schuco.
Bifold vs sliding vs French doors
Sightlines, opening width and thresholds compared.
Aluminium sliding door costs
What drives the price of a sliding door in the UK.
Slimline aluminium windows and doors
How the slimmest systems we fit compare.
Cortizo sliding doors
Cor Vision and Cor Vision Plus, fabricated in our own workshop.
Schuco lift-and-slide
Where lift-and-slide is the right mechanism, fabricated in our own workshop.
Origin Sliding Doors in Real Homes

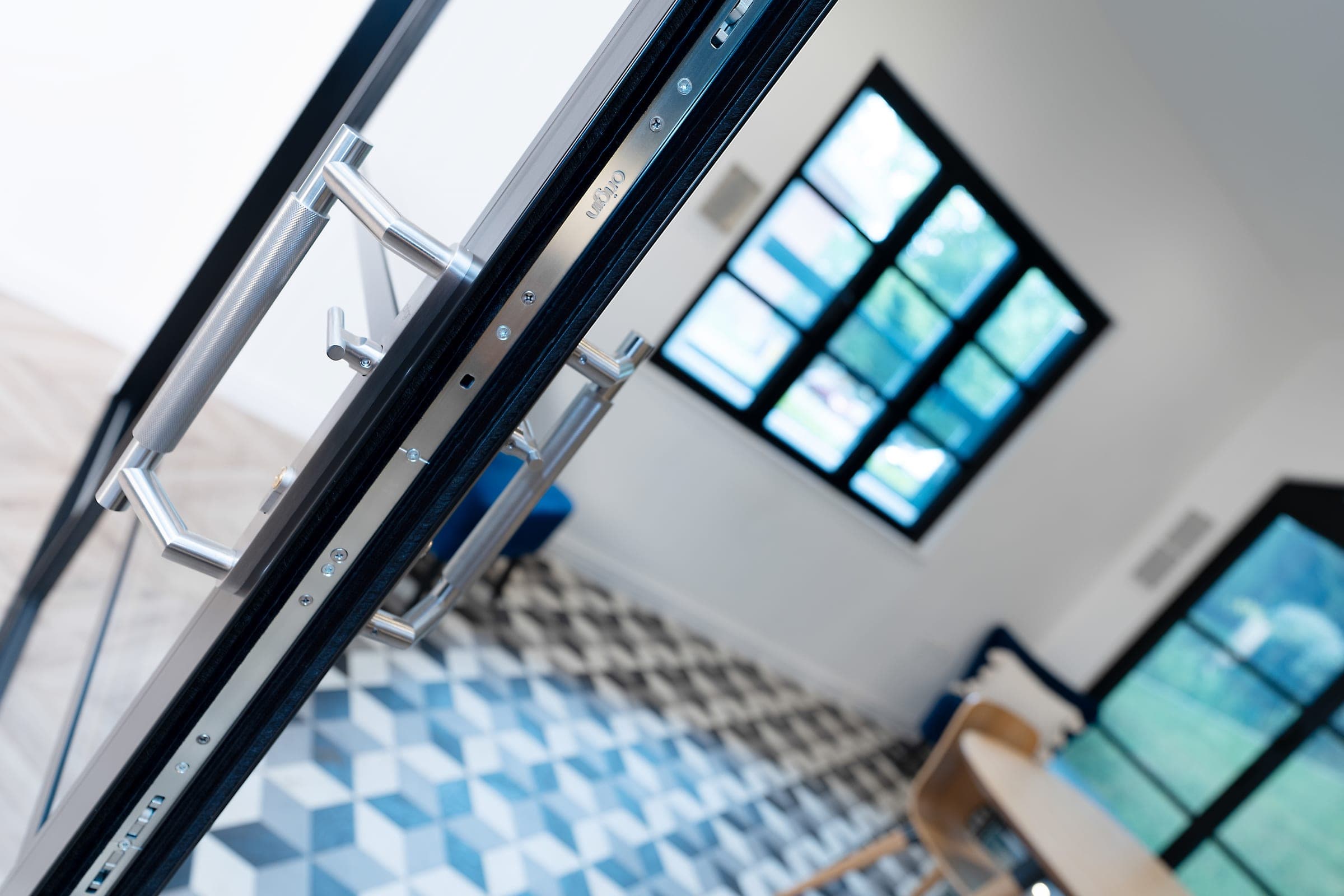

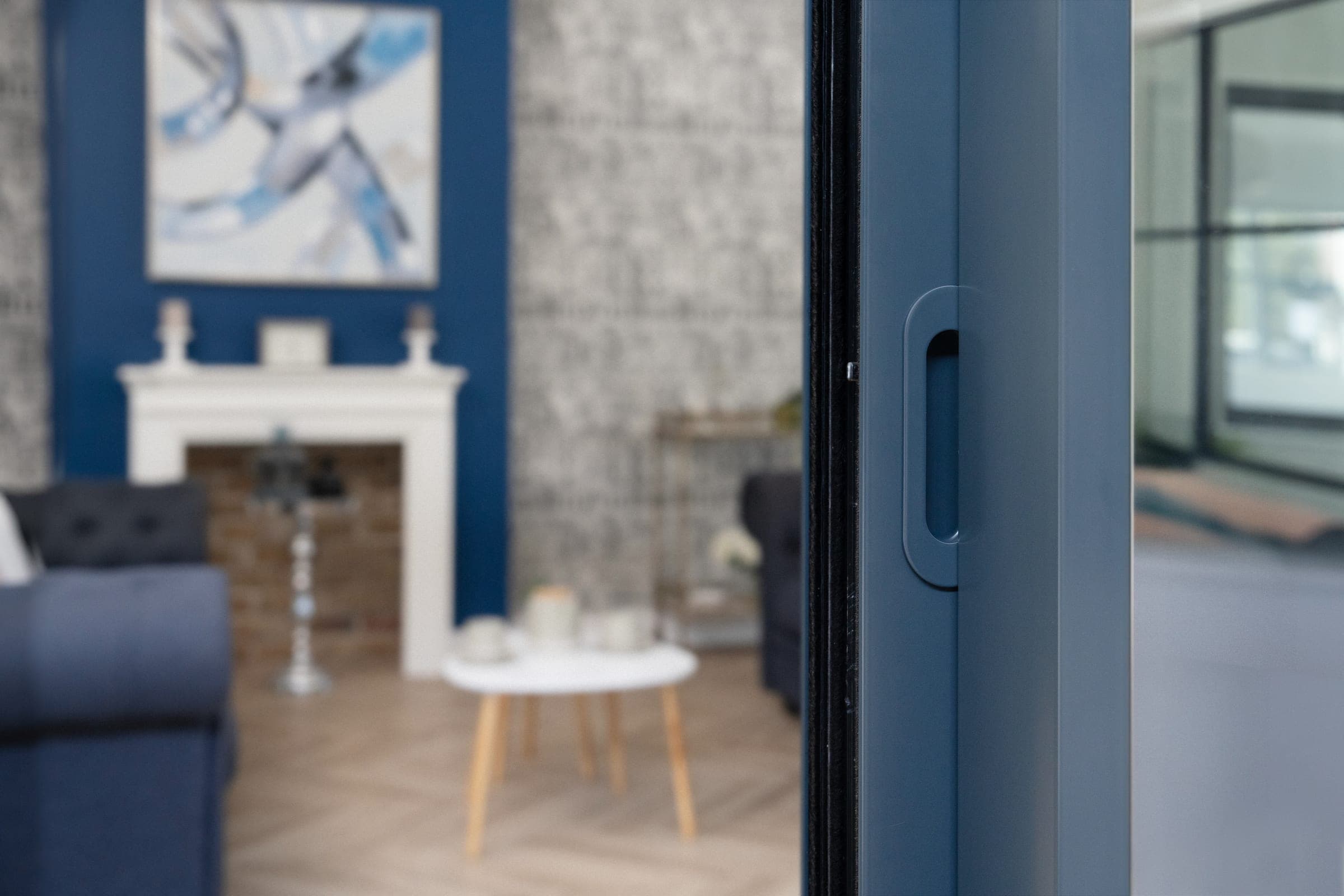

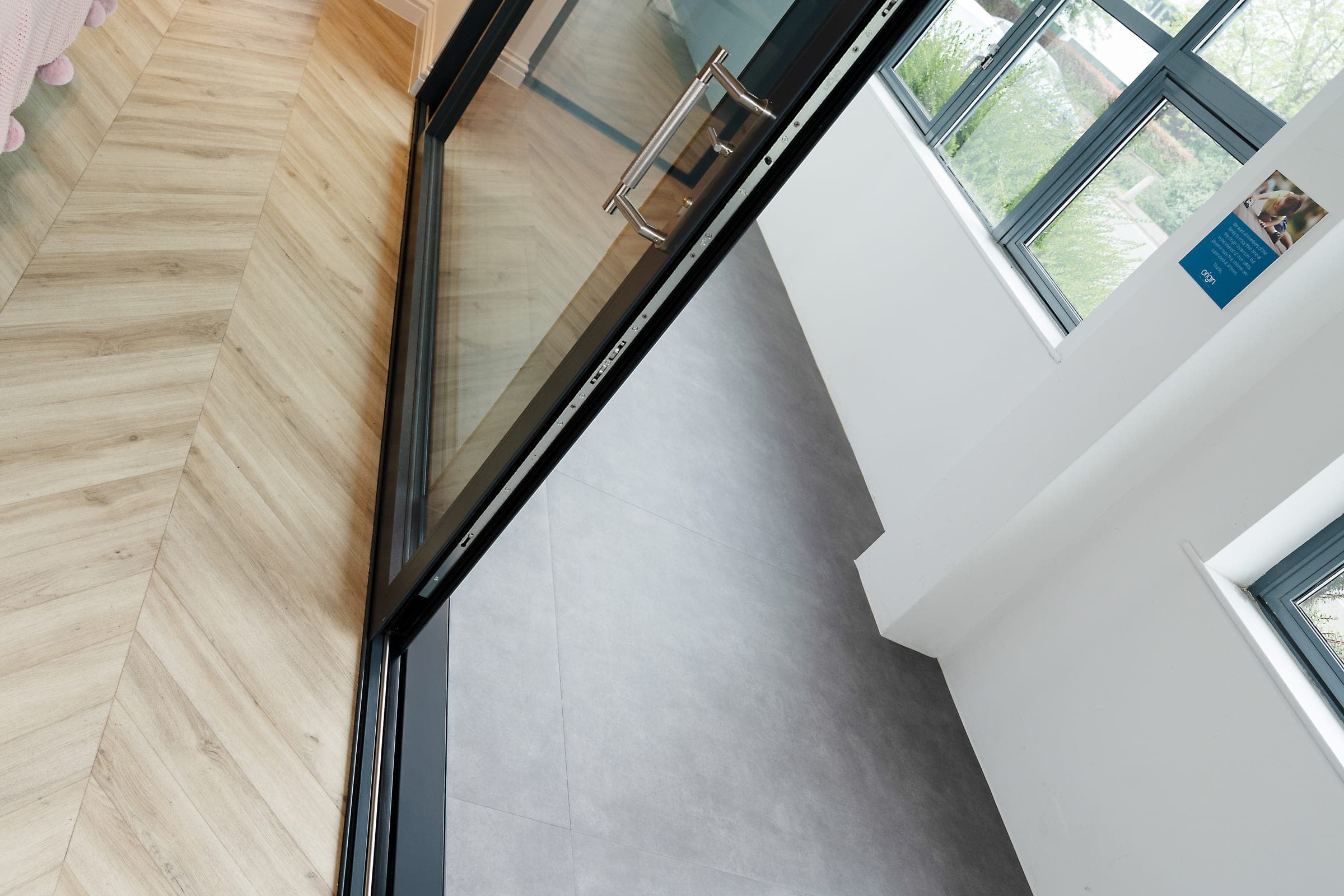

The OS-29+ in residential settings: the flush-stacking option, the concealed track and the slim 29 mm interlock that keeps the view open.

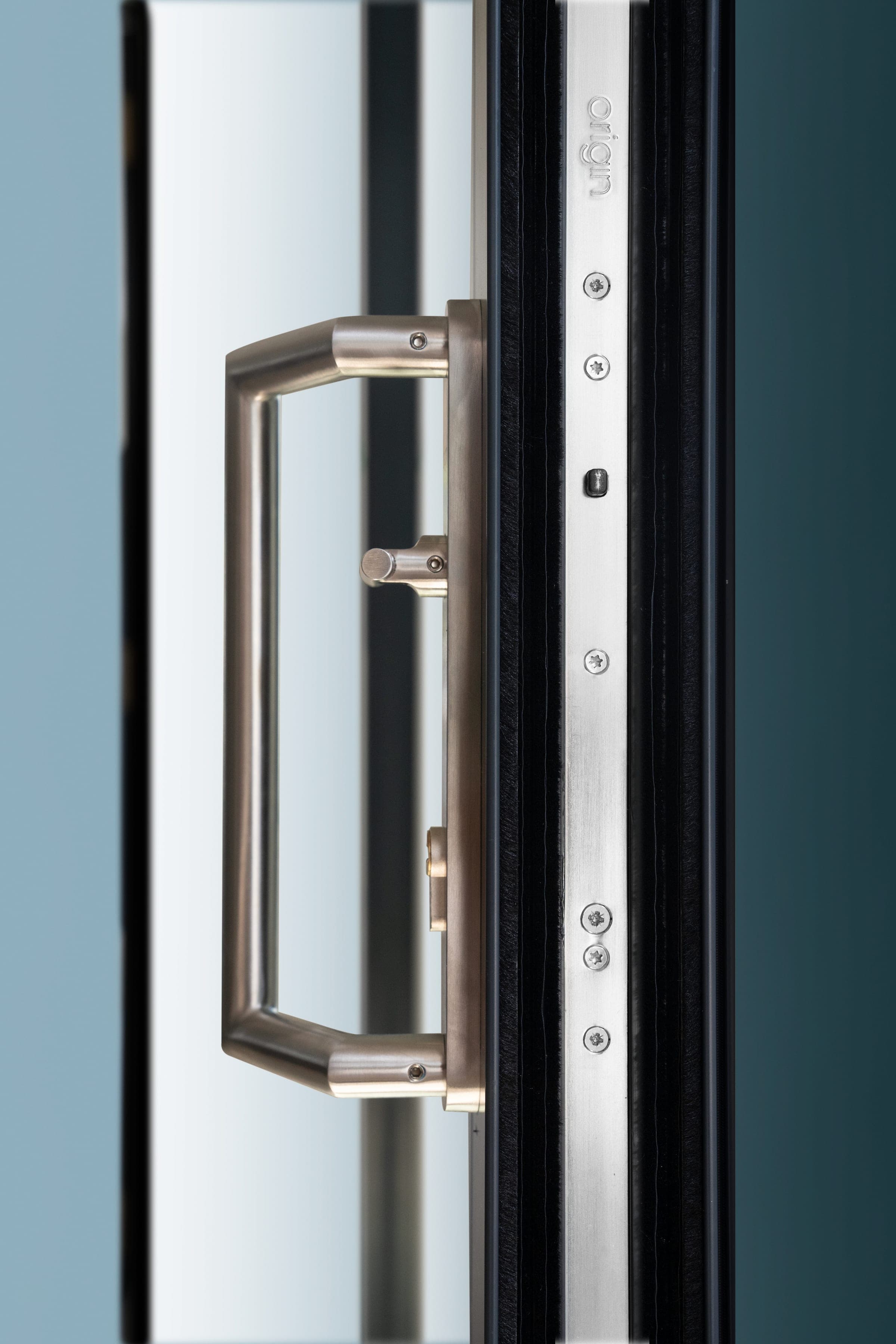

Hardware: Handle Finishes for the OS-29+
Origin's Signature Knurled handles come in six PVD finishes: Antique Brass, Brushed Black, Brushed Bronze, Rose Gold, Satin Brass and Satin Stainless. All-In-One and Patio D-handles are also available.

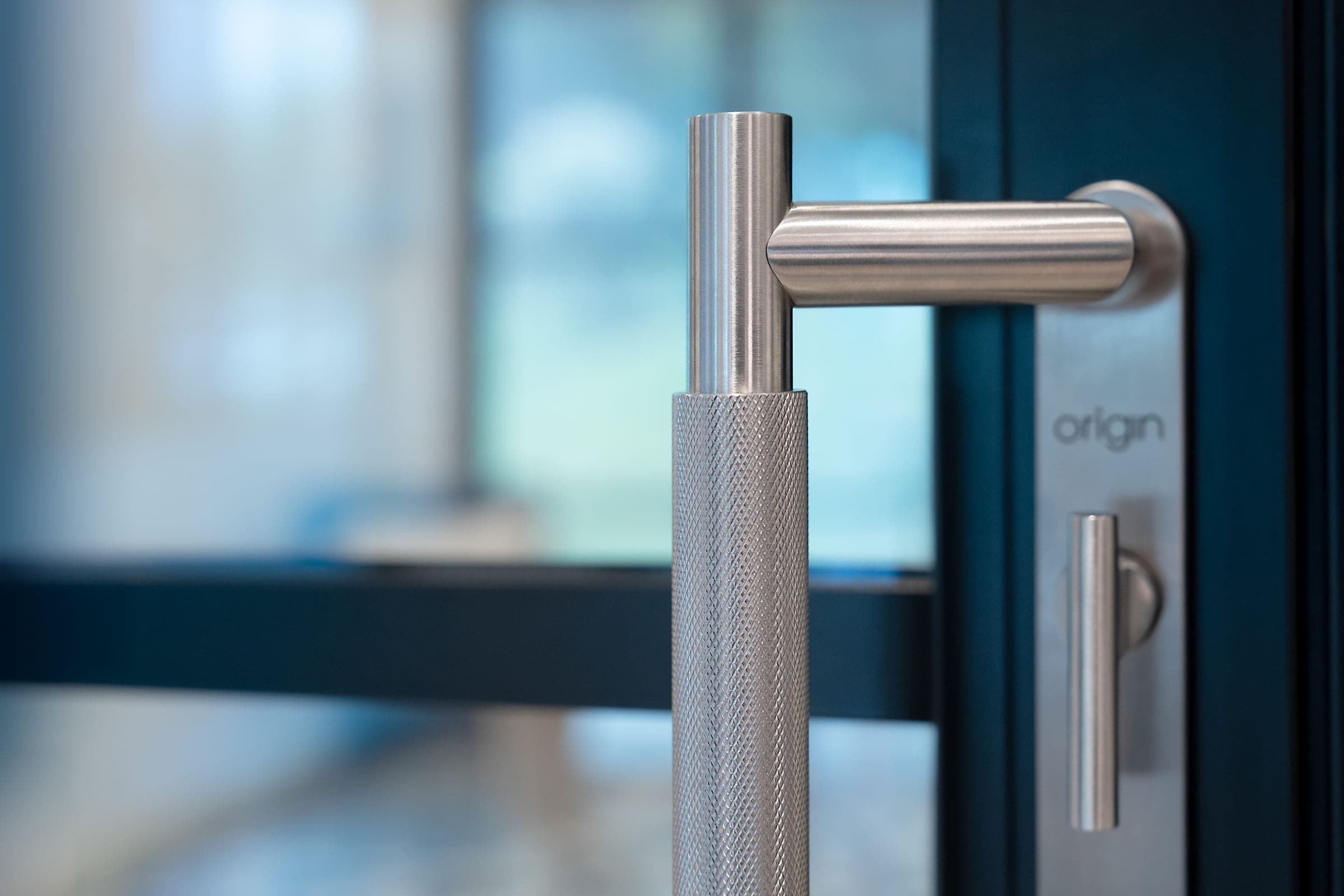

Signature Knurled All-In-One Offset
Knurled grip pattern that matches Origin's external door handles.

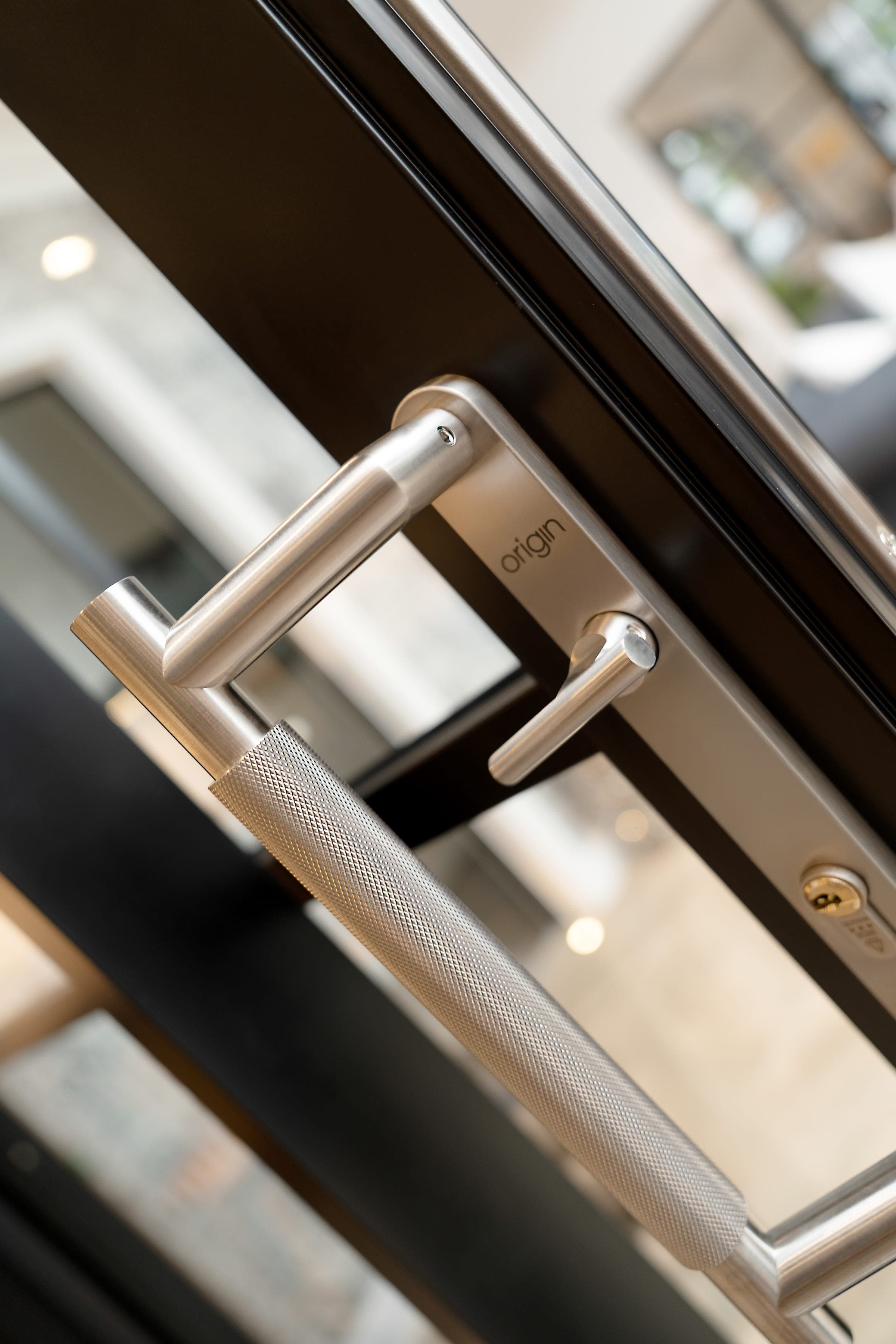

Signature Knurled, alternate finish
Six PVD finishes: Antique Brass, Brushed Black, Brushed Bronze, Rose Gold, Satin Brass, Satin Stainless.
Get a free quote for Origin Sliding Doors
Free no-obligation written quote. Fast response times. FENSA registered with a 10-year CPA insurance-backed guarantee. Serving Buckinghamshire, Berkshire, Oxfordshire, Surrey, Hampshire, Hertfordshire & West London.
The Rest of the Origin Range
Many of our clients pair an Origin slider with matching Origin doors and windows in the same finish.
Origin Sliding Doors Across Buckinghamshire & Berkshire
Vitrum Solutions installs Origin sliding doors throughout Buckinghamshire and Berkshire, including Beaconsfield, Gerrards Cross, Amersham, Marlow, Windsor, Ascot and Maidenhead, and across Oxfordshire, Surrey, Hampshire, Hertfordshire and West London. Origin is headquartered in High Wycombe, so support for local installations is close at hand. Every installation is FENSA registered with our 10-year CPA insurance-backed guarantee, alongside Origin's guarantee of up to 20 years on parts.
Origin Sliding Doors: Frequently Asked Questions
What is the difference between the Origin OS-29+, OS-29, OS-44 and OS-77?
All four are Origin aluminium in-line sliding doors. The number is the interlock, the vertical line where two sliding panels meet: 29 mm on the OS-29+ and OS-29, 44 mm on the OS-44 and 77 mm on the OS-77. The OS-29+ is the current flagship: a 167 mm frame, sashes up to 2,200 × 2,620 mm, U-values as low as 0.78 W/m²K, PAS 24:2022 and a flush-stacking option. The OS-29 and OS-77 are PAS 24:2016 certified; the OS-44 is not PAS 24 rated.
Are Origin sliding doors lift-and-slide?
No. Every Origin sliding door is an in-line slider: the panels run on concealed rollers along the track without being lifted. Where a project needs lift-and-slide, we fabricate and install Cortizo or Schuco lift-and-slide systems instead, and we set out both options in your quote.
How wide can an Origin sliding door be?
On the OS-29+, a two-panel set runs from 1,127 mm to 4,450 mm wide, a three-panel set to 6,621 mm, a four-panel OXXO set to 8,825 mm and a six-panel OXXXXO set to 13,166 mm, with frame heights up to 2,700 mm. Origin describes these widths as a guide, because the final limit depends on sash height and area, so we confirm your exact layout at survey.
What U-value does the Origin OS-29+ achieve?
It depends on the glass. With a 28 mm double-glazed unit at a 1.2 centre-pane value the whole door reaches 1.4 W/m²K, which meets Part L for replacement doors. A 1.1 centre pane gives 1.2 W/m²K, and triple glazing in a 44 mm unit takes it down to 0.78 W/m²K. Origin's figures are calculated to BS EN ISO 10077-1 and 2.
Are Origin sliding doors secure?
The OS-29+ is tested to PAS 24:2022, the current edition of the UK security standard, with a multi-point lock and a 3-Star Diamond cylinder as standard. The OS-29 and OS-77 hold PAS 24:2016. Origin's certificates for the OS-29+ and OS-77 apply with a P1A laminated glass unit. The OS-44 is not PAS 24 rated, which is why we steer security-led projects to the OS-29+.
What is flush stacking on the OS-29+?
Flush stacking lets the sliding panels finish flush with each other when the door is open, for a cleaner look across the stacked glass. When you choose it, the external handle is replaced by Origin's colour-coded recessed handle. It is available on the OS-29+ only.
What colours do Origin sliding doors come in?
Origin's popular finishes include Jet Black 9005M, Anthracite Grey 7016M, Black Grey 7021M, Slate Grey 7015M and Hipca White, and more than 150 RAL colours are available. A marine-grade finish is offered for coastal and exposed locations. Popular colours carry Origin's shortest lead times.
What guarantee comes with Origin sliding doors?
Origin gives up to a 20-year guarantee on parts, depending on where the doors are installed (Origin's terms apply). Every Vitrum Solutions installation is also FENSA registered and backed by our 10-year CPA insurance-backed guarantee on the installation.
