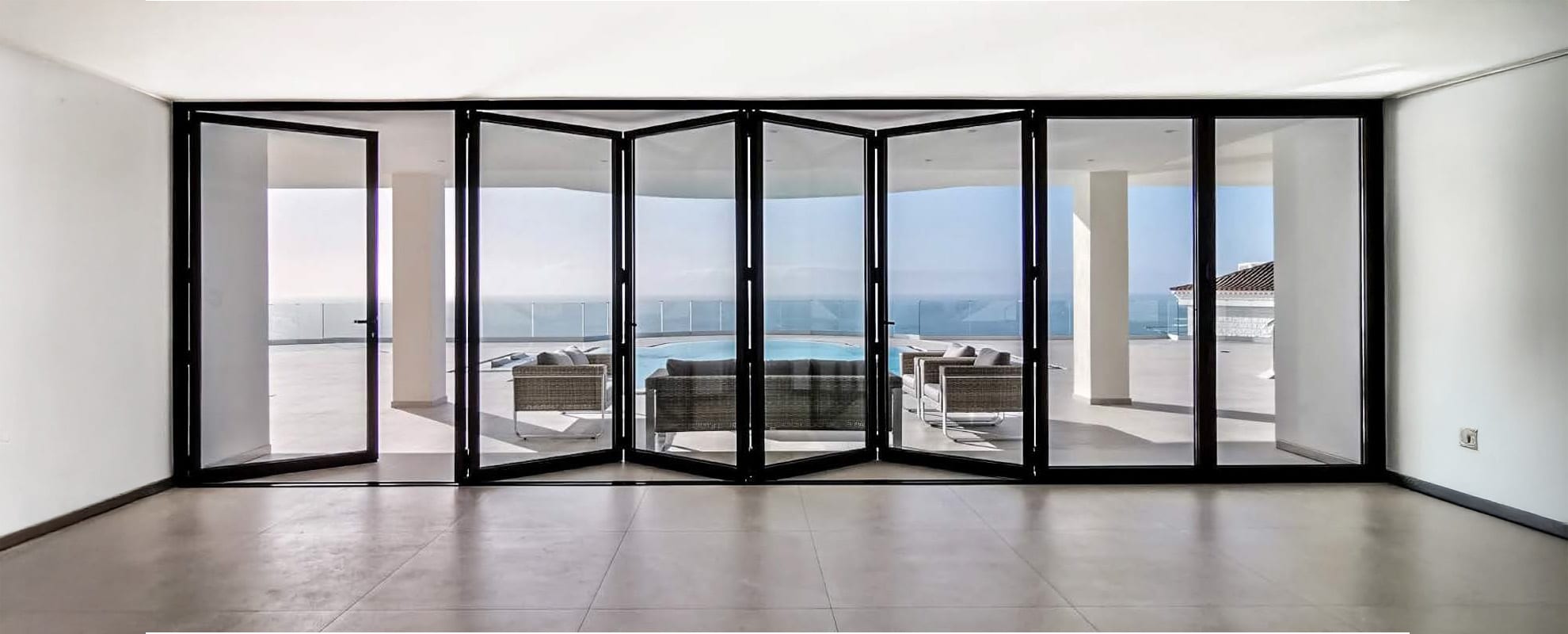

Cortizo aluminium bifold doors opening to a sea-view terrace, 7 panels, anthracite frames

Aluminium

Aluminium Bifold Doors

Transform your living space with aluminium bifold doors from Cortizo, Schuco and Origin. Folding neatly to one side, they create an unbroken connection between indoor and outdoor spaces with ultra-slim sightlines, exceptional thermal performance, and smooth multi-panel operation across openings of 6 metres and more.

Approved installerCortizoSchucoOrigin

Features & Benefits

Resistance to Atmospheric Agents

Laboratory-tested for watertightness and wind performance

Thermal Insulation

High insulation coefficients for energy efficiency

Acoustic Insulation

Designed to reduce outdoor noise pollution

Wide Colour Range

Over 200 RAL colours on Cortizo, plus anodised finishes and a different colour inside and out

Avant-Garde Aesthetics

Customisable solutions for diverse projects

Durability

Aluminium's long-lasting resistance qualities, with a 40+ year lifespan

Sustainability

Infinite recyclability with minimal environmental impact

Our Installations

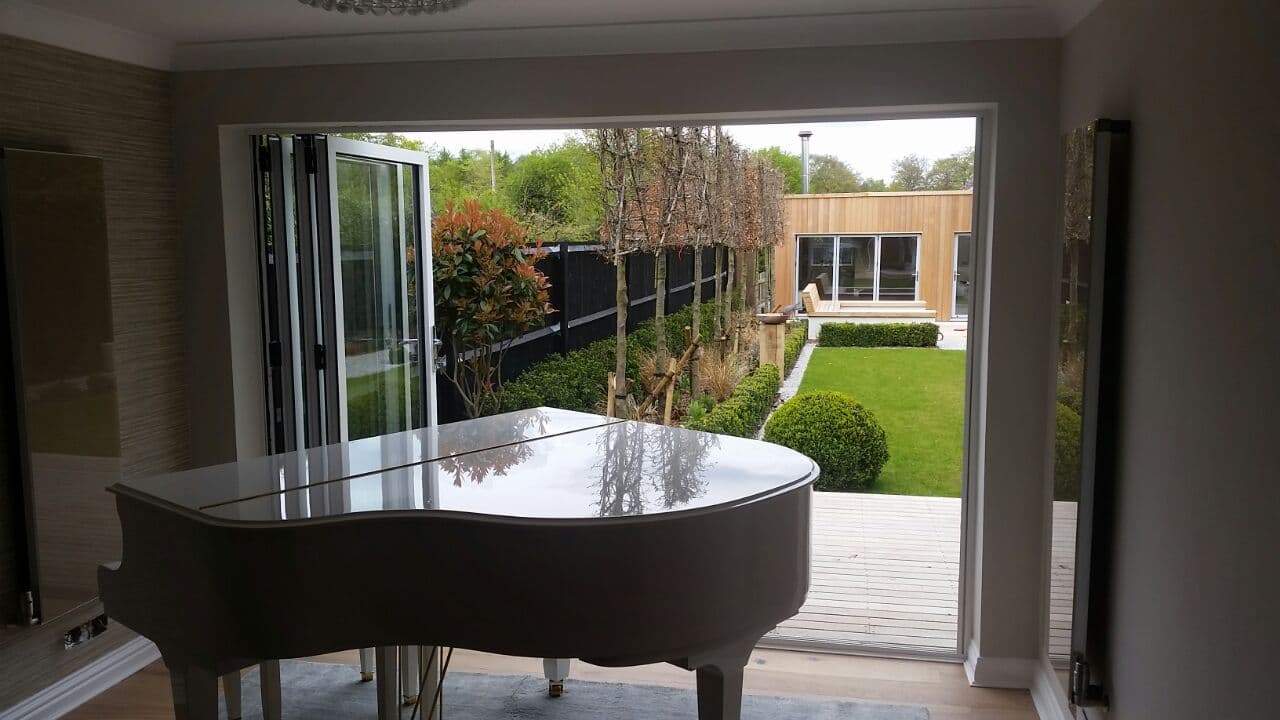

Aluminium bifold doors open to garden with grand piano

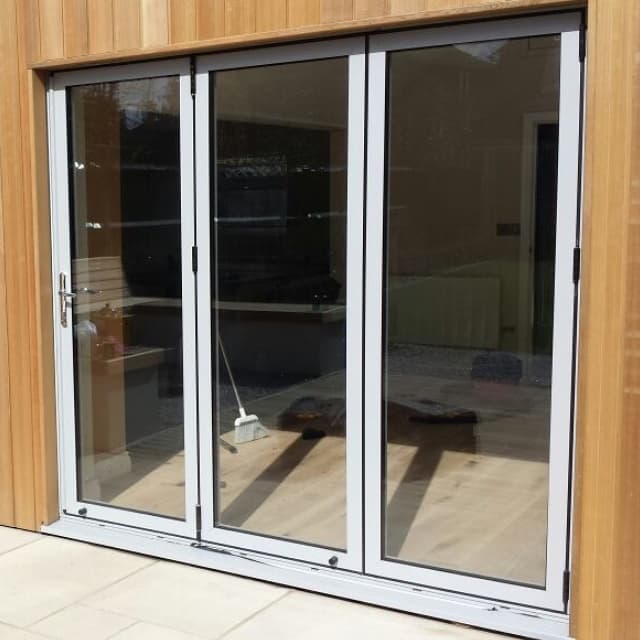

Aluminium bifold doors on cedar-clad garden room

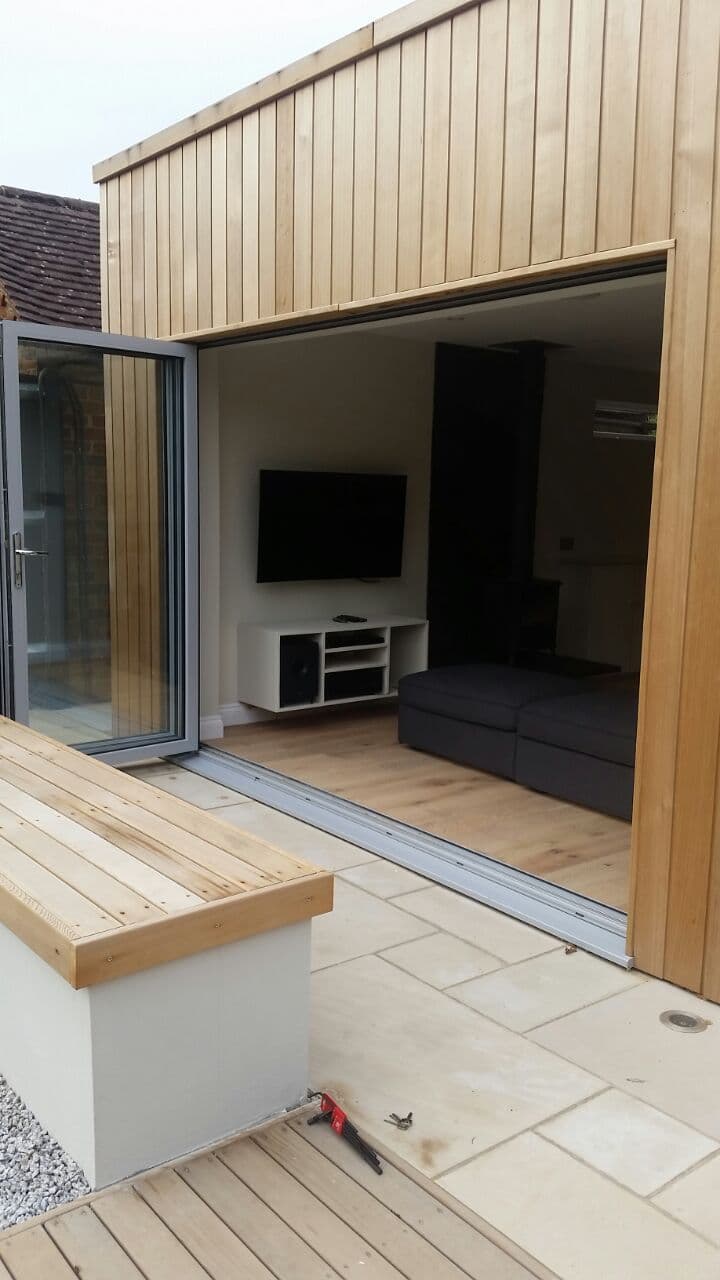

Aluminium bifold doors open to garden room

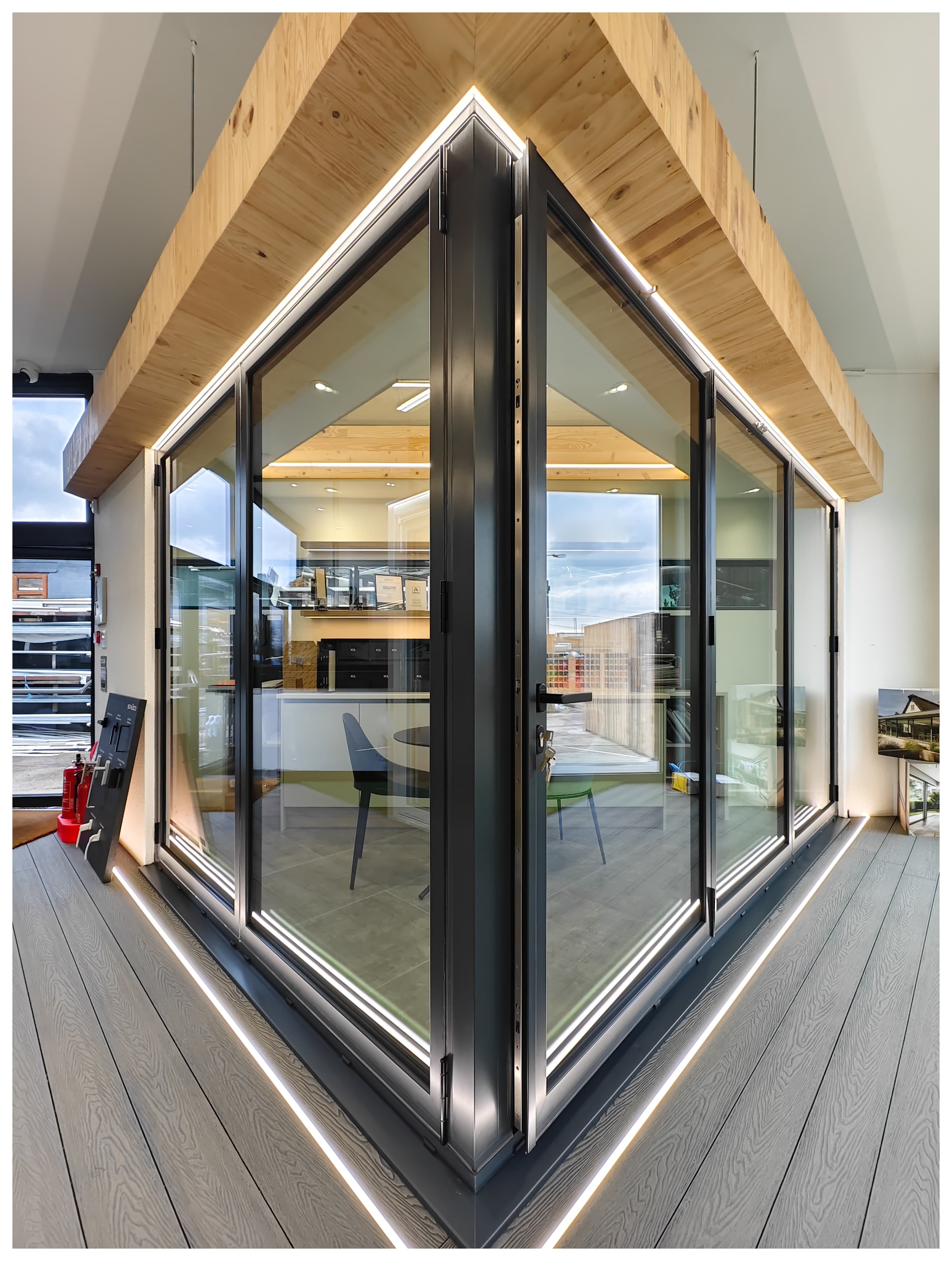

Aluminium bifold doors with apex feature in showroom

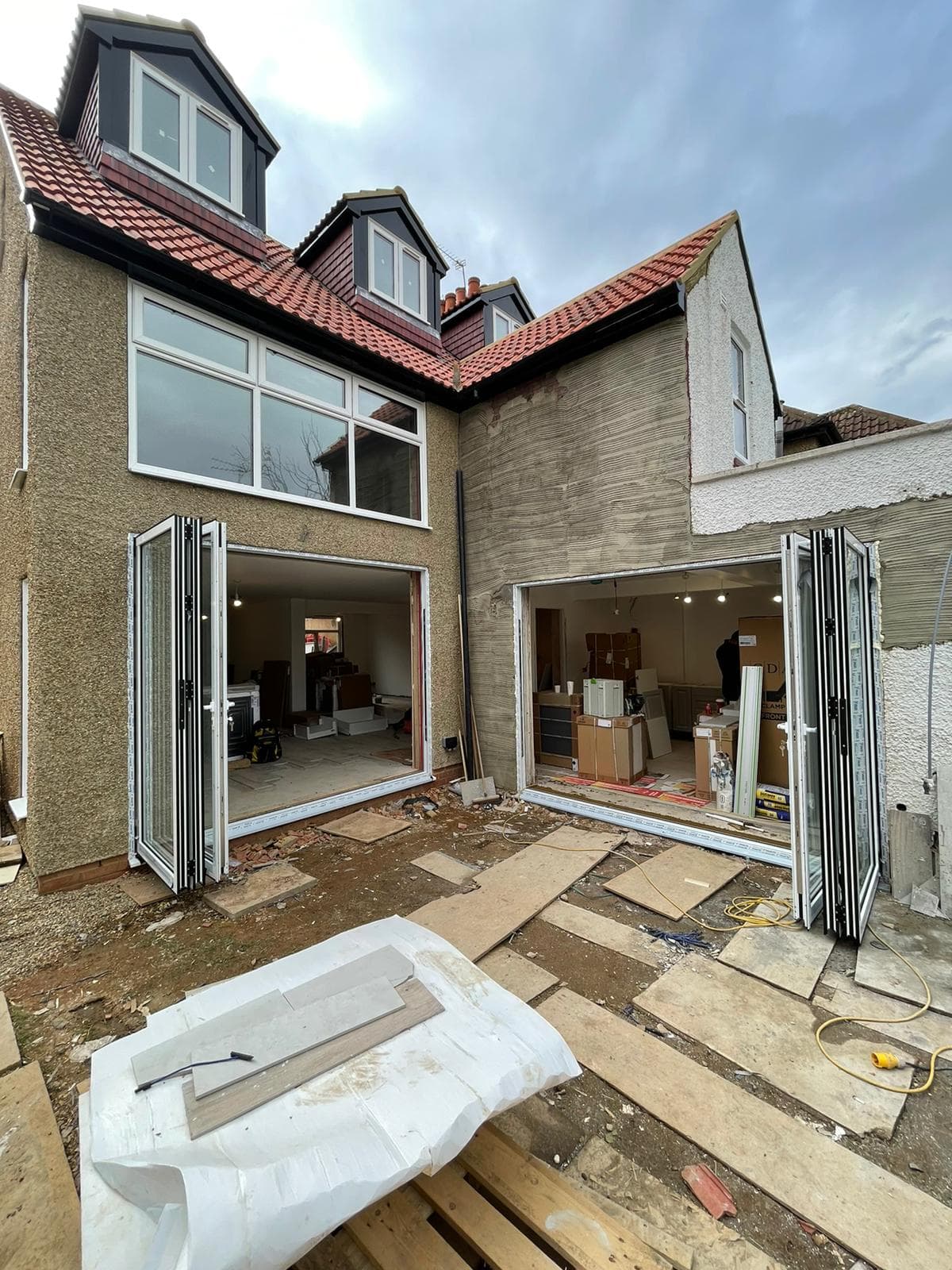

Aluminium bifold doors with casement windows on extension
Contemporary home with aluminium bifold doors at dusk

Technical Specifications

Cortizo Bi-fold Plus Door
80mm frame depth, 110mm reduced central junction, max panel 1.2m × 3m
Schuco AS FD 75
75mm frame depth, 90mm face width, concealed fittings
Thermal Performance
Schuco AS FD 90.HI Uw 1.0 W/m²K at Ug 0.7; Origin OB-36+ 0.78 triple glazed
Security
PAS 24: Cortizo Bi-Fold (2012 edition); Origin OB-36+, OB-49 and OB-72 (2022 edition)
Acoustic Insulation
Maximum glazing 45mm

Which aluminium bifold door systems we offer

We fabricate Cortizo and Schuco bifold doors in our own Uxbridge workshop, where we cut, machine and assemble the manufacturer's profile into finished doors, then fit them with our own installers. We also supply and install Origin bifold doors as an Origin Approved Partner. Origin manufactures its doors in its own factory in High Wycombe.

From Cortizo we offer the Bi-Fold and the Bi-fold Plus Door. Both take sashes up to 1.2 m wide and 3 m high, and the Bi-fold Plus Door has a reduced 110 mm central junction. Typical openings of 4 to 6 metres are spanned in three to seven leaves.

From Schuco we offer the AS FD 75 and AS FD 90.HI. The AS FD 75 has a 75 mm frame depth and a 90 mm sightline where two leaves meet. The AS FD 90.HI is the higher-insulation system on a 90 mm frame. The Schuco Cornerless bifold opens up a corner with no permanent post, and the ASS 70 FD bifold takes leaves up to 3.0 m by 1.2 m.

From Origin we offer the OB-36+, OB-49 and OB-72. The numbers are the sash widths in millimetres. At the hinge, where two sashes meet, the sightline is 84 mm on the OB-36+, 110 mm on the OB-49 and 154 mm on the OB-72. The OB-36+ can be configured as a bifold of up to 14 panels and 15,000 mm.

Sizes and thermal performance

Sash size sets the look of a bifold door. Cortizo sashes reach 1.2 m wide and 3 m high. Origin sashes reach 1,200 mm wide and 2,846 mm high on the OB-36+, or 2,924 mm high on the OB-49 and OB-72.

On thermal performance, the Schuco AS FD 75 achieves a whole-door U-value of 1.3 W/m²K and the AS FD 90.HI achieves 1.0, both with Ug 0.7 glass. The Origin OB-36+ achieves 1.4 W/m²K with 28 mm double glazing and a 1.2 W/m²K centre pane, and 0.78 W/m²K with triple glazing. We confirm the figure for your door, at your sizes and with your glass, in your quotation.

Security

The Cortizo Bi-Fold is tested to PAS 24:2012. The Origin OB-36+, OB-49 and OB-72 hold PAS 24:2022 certificates, which were passed with P1A glass and 3-Star cylinders, so we specify both on any door where certification matters. The Schuco AS FD 75 and AS FD 90.HI are rated RC2. Tell us at the start if your project needs a tested door and we will quote the right system.

Installation and guarantee

Every bifold door we fit is FENSA registered and covered by a 10-year CPA insurance-backed guarantee. Origin doors also carry Origin's own guarantee of up to 20 years on parts. We work across Buckinghamshire, Berkshire, Oxfordshire, Surrey, Hampshire, Hertfordshire and West London.

If you are still choosing a door type, our guide to bifold, sliding and French doors compares the three. When you are ready, request a free quote.

Get a free quote for Aluminium Bifold Doors

Free no-obligation written quote. Fast response times. FENSA registered with a 10-year CPA insurance-backed guarantee. Serving Buckinghamshire, Berkshire, Oxfordshire, Surrey, Hampshire, Hertfordshire & West London.

Call us
0800 861 1450
5.0· 17 Google reviews · FENSA registered

Or request a callback

No-obligation written quote. We respond within 24 hours.

Frequently Asked Questions

What bifold door systems do you install?

We fabricate and install the Cortizo Bi-Fold and Bi-fold Plus Door and the Schuco AS FD 75 and AS FD 90.HI, built in our Uxbridge workshop. We also supply and install the Origin OB-36+, OB-49 and OB-72 as an Origin Approved Partner. Every installation is FENSA registered with a 10-year CPA insurance-backed guarantee.

How much do aluminium bifold doors cost?

Final price depends on number of panels, opening size, glazing specification and any motorisation. Every Vitrum Solutions installation includes FENSA registration and a 10-year CPA insurance-backed guarantee. Request a free no-obligation quote.

Do I need planning permission for bifold doors?

Generally not required for replacement installations. We recommend consultation for listed properties or conservation areas: our team can advise on this when we prepare your quotation.

Aluminium vs uPVC bifold doors?

Aluminium frames offer superior strength allowing slimmer profiles and larger spans. They also last longer (40 years or more, longer than uPVC) and don't warp or discolour.

How long does installation take?

One to two days for a standard installation. Every job is FENSA registered with a 10-year insurance-backed guarantee, underwritten by the CPA.

What guarantees come with your bifold doors?

All installations are FENSA registered and include a 10-year CPA insurance-backed guarantee. Origin systems also carry Origin's own guarantee of up to 20 years on parts.
