Origin Internal Doors in Buckinghamshire & Berkshire
The Origin OI-30: steel-look aluminium internal doors and glazed screens with a 30 mm frame, made to measure as single doors, French doors, fixed screens and corner sets up to 3,048 mm tall. The way to divide a kitchen, living space or home office without losing the light. We survey, supply and install across Buckinghamshire, Berkshire, Oxfordshire, Surrey, Hampshire, Hertfordshire and West London.
The OI-30 at a Glance
System
Origin OI-30 internal door
Frame
30 mm wide, 40 mm deep
Configurations
Single · French · Fixed screen · Corner
Colours
Jet Black as stock, 150+ RAL colours
Why Clients Choose the OI-30
The steel look, in aluminium
Origin designed the OI-30 to bring the steel look to internal doors in aluminium. A 30 mm aluminium frame with slim glazing divides gives the crisp, black-framed look of a traditional steel screen, while the glass keeps light moving between rooms.
Single, French, fixed or corner
Choose single doors, French doors or fixed glazed screens, and couple them together to build wider runs and corner sets. A fixed screen with a door beside it is the classic way to separate a kitchen from a living or dining space without losing the light.
Your choice of glazing pattern
Horizontal and vertical divides placed to suit each door, a choice of glass, and options including a kickplate, a solid bottom panel and a top light above the door. We confirm the pattern with you before anything is ordered.
Hardware with character
Signature Knurled, Contemporary and Heritage handle collections in finishes from Antique Brass and Satin Brass to Matt Black, Matt Bronze, Satin Nickel and Hammered Pewter, with coordinating hinges, door stops and turn-and-release locks.
Origin OI-30 Specification
Origin's own figures for the OI-30 internal door system.
| Specification | Origin OI-30 |
|---|---|
| Frame width · depth | 30 mm · 40 mm |
| Glass | 4, 6 or 6.8 mm |
| Glazing divides | Horizontal and vertical divides, placed per door |
| Door sash width | 300 to 1,000 mm |
| Door sash height | 1,500 to 2,500 mm |
| Single door frame width | 346 to 1,046 mm |
| French door frame width | 660 to 2,060 mm |
| Fixed screen frame width | 300 to 2,000 mm (couple screens for wider runs) |
| Maximum frame height | 3,048 mm |
| Maximum sash weight | 120 kg |
| Threshold clearance | 10 mm as standard, up to 50 mm |
| Options | Kickplate, bottom panel, frame extender, top light above doors |
Source: Origin OI-30 spec guide (2026) and cheat sheet. Opening doors cannot be coupled side by side. Final sizes and specification are confirmed at survey.

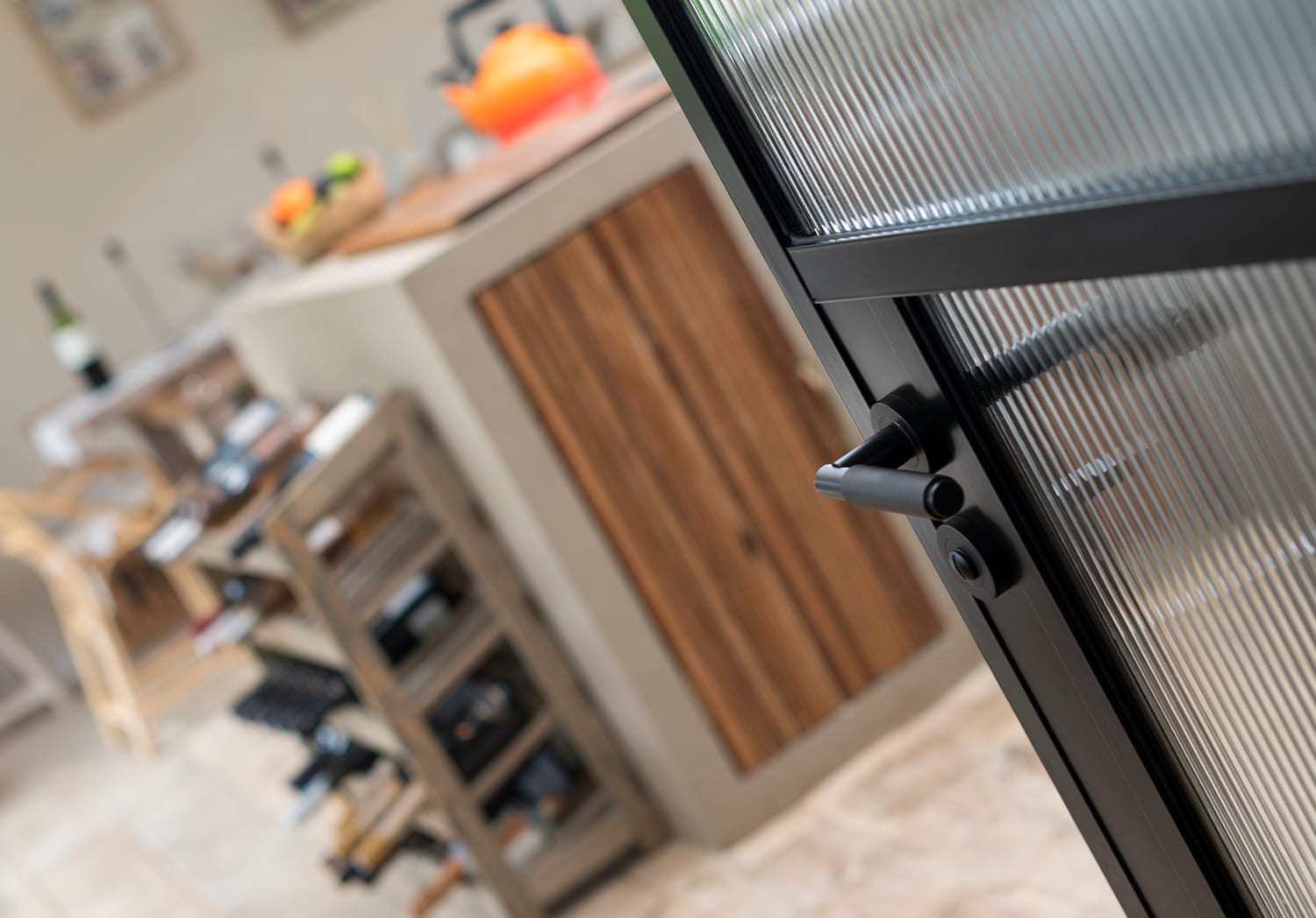

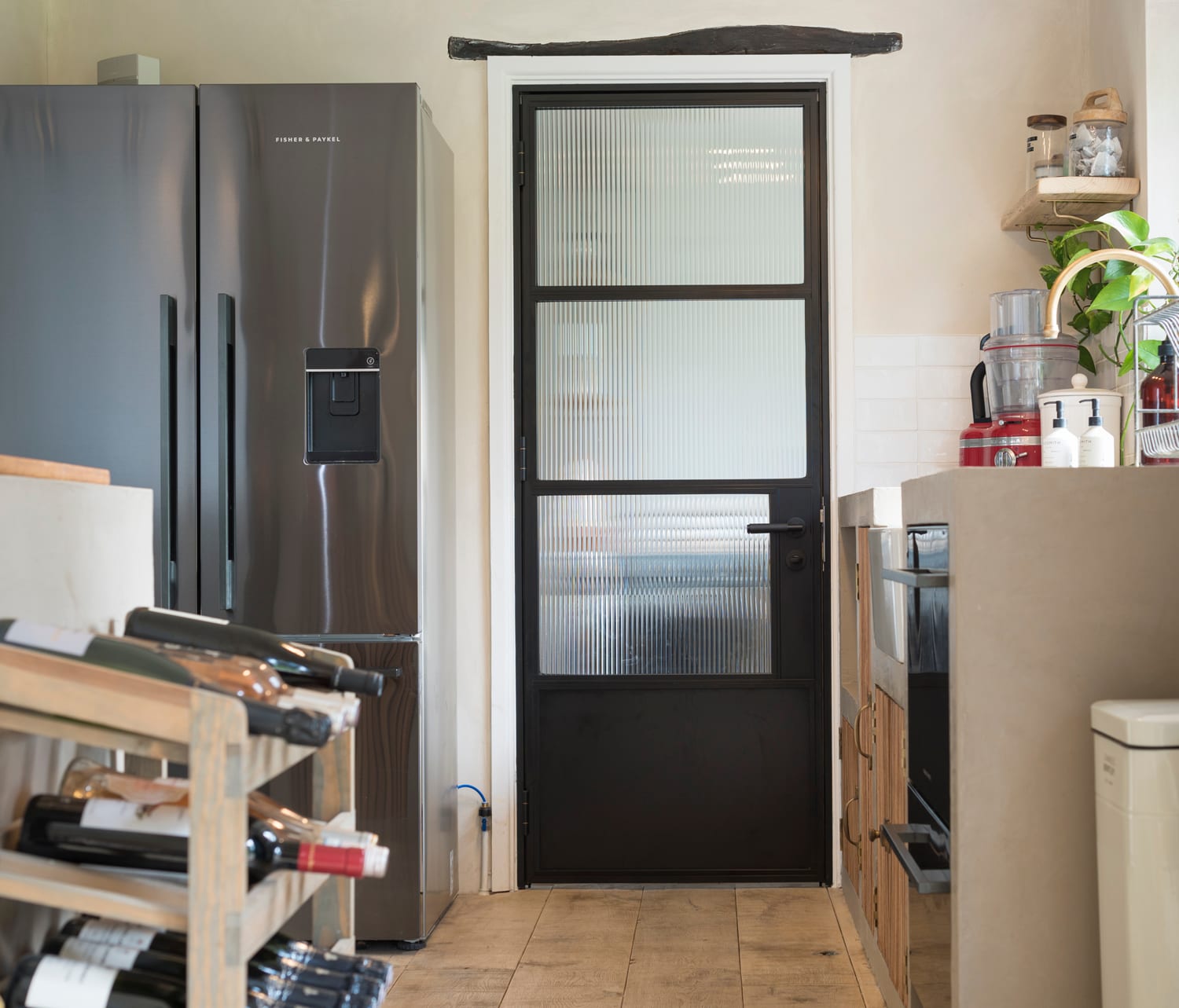

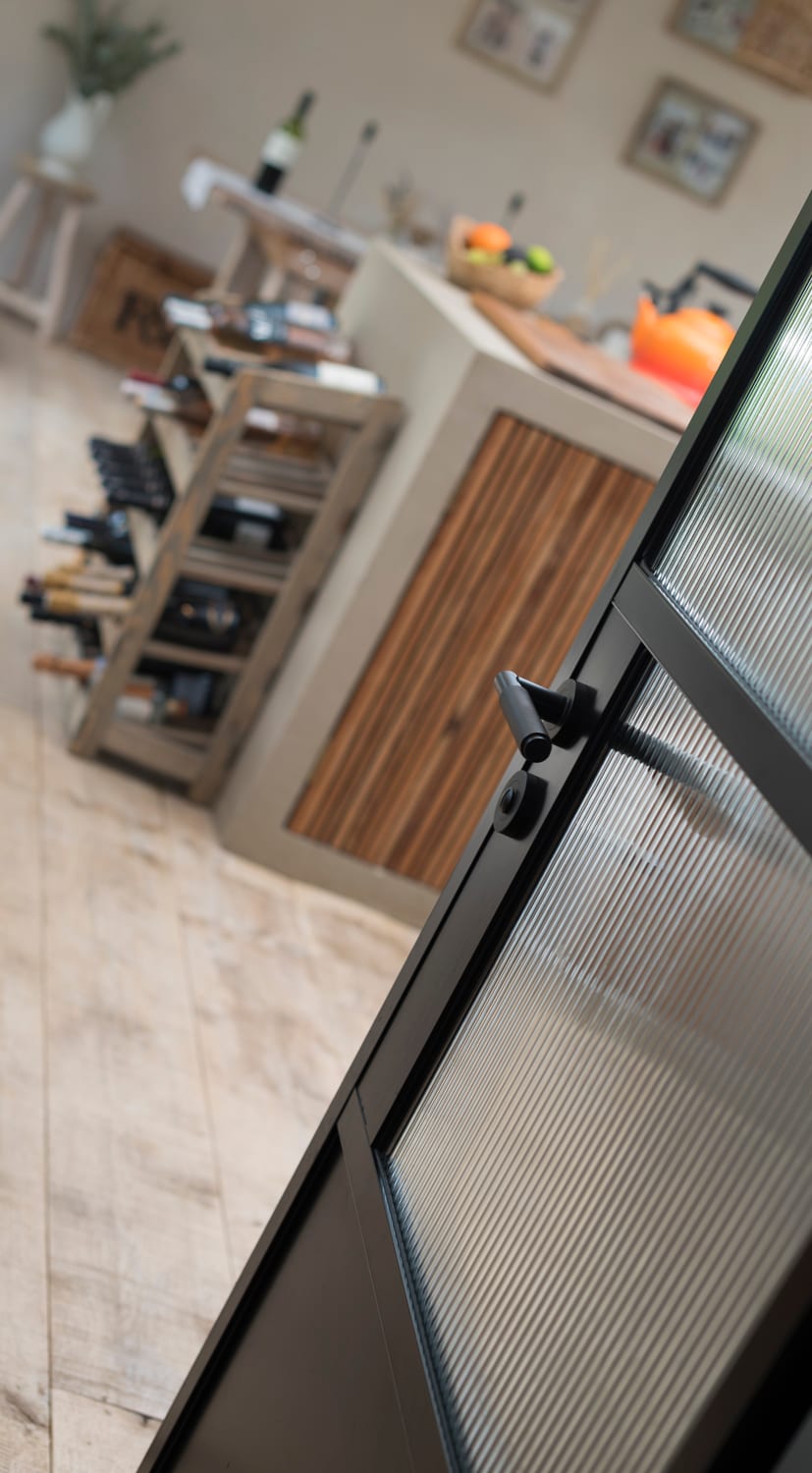

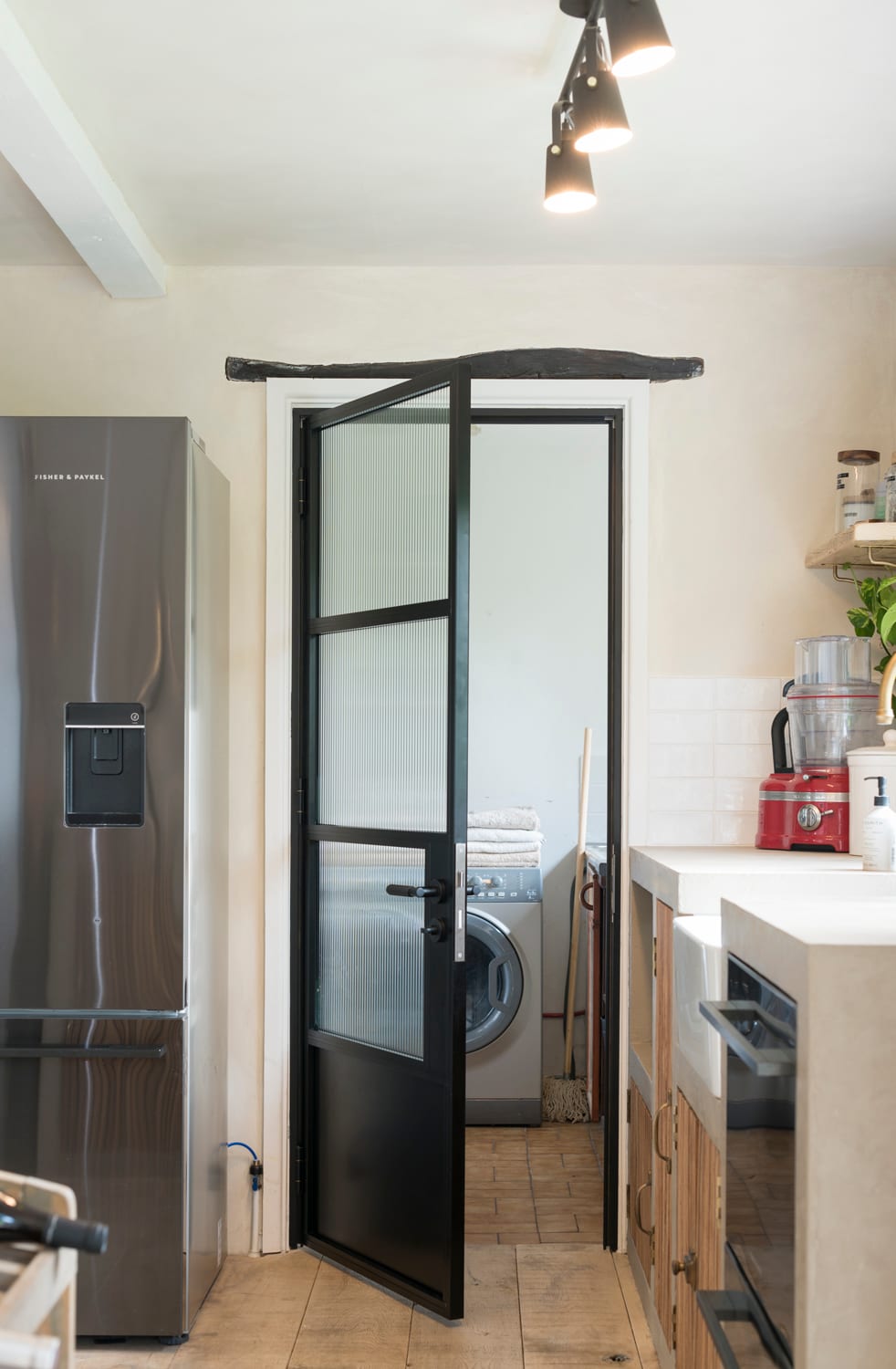

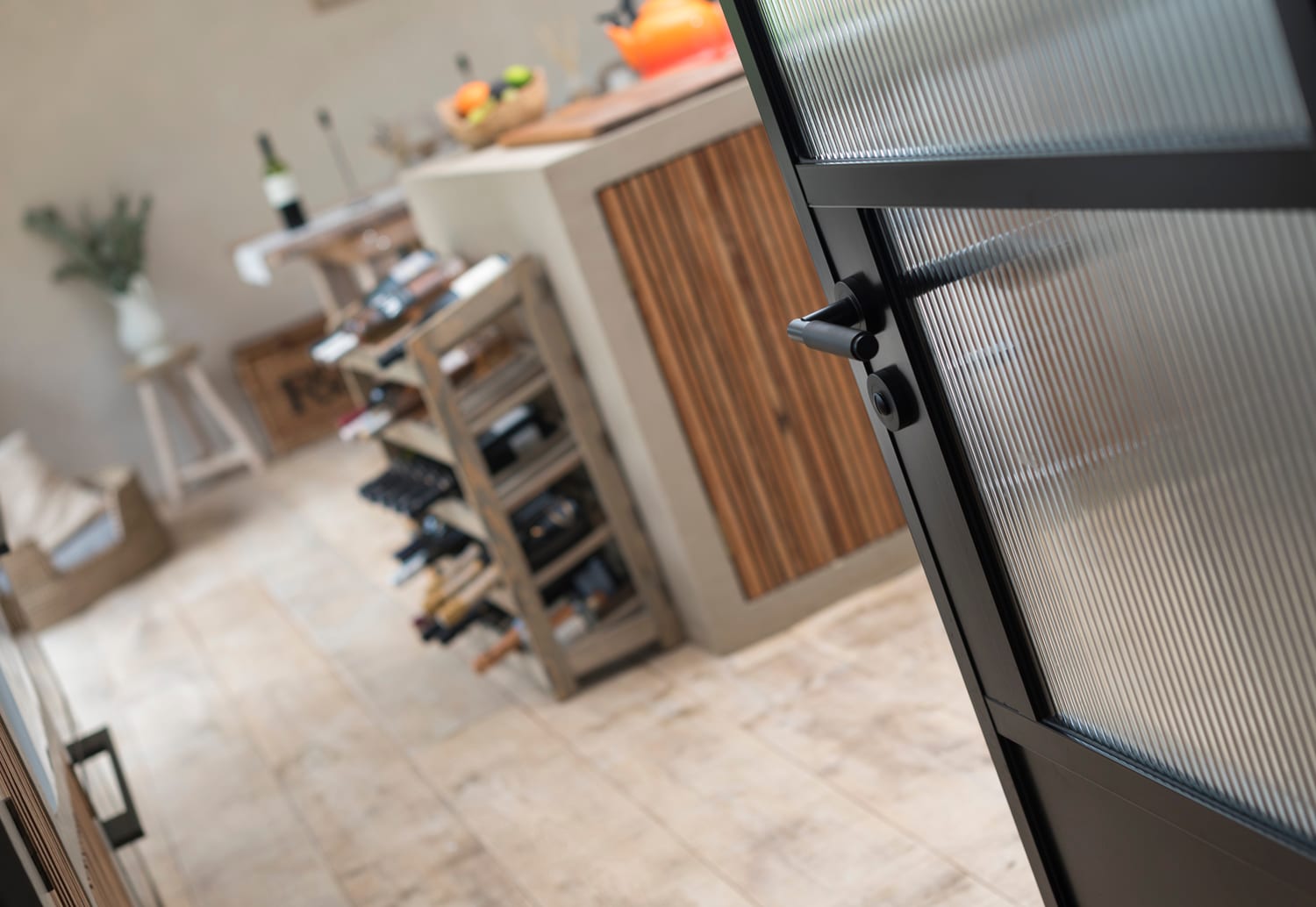

The OI-30 in Real Homes
Kitchens, utility rooms and living spaces divided with the OI-30's slim black frame and reeded or clear glass.
Hardware: OI-30 Handle Collections
Signature Knurled, Contemporary and Heritage handles, with coordinating hinges and door stops. Origin's Essential handle is a no-cost option.

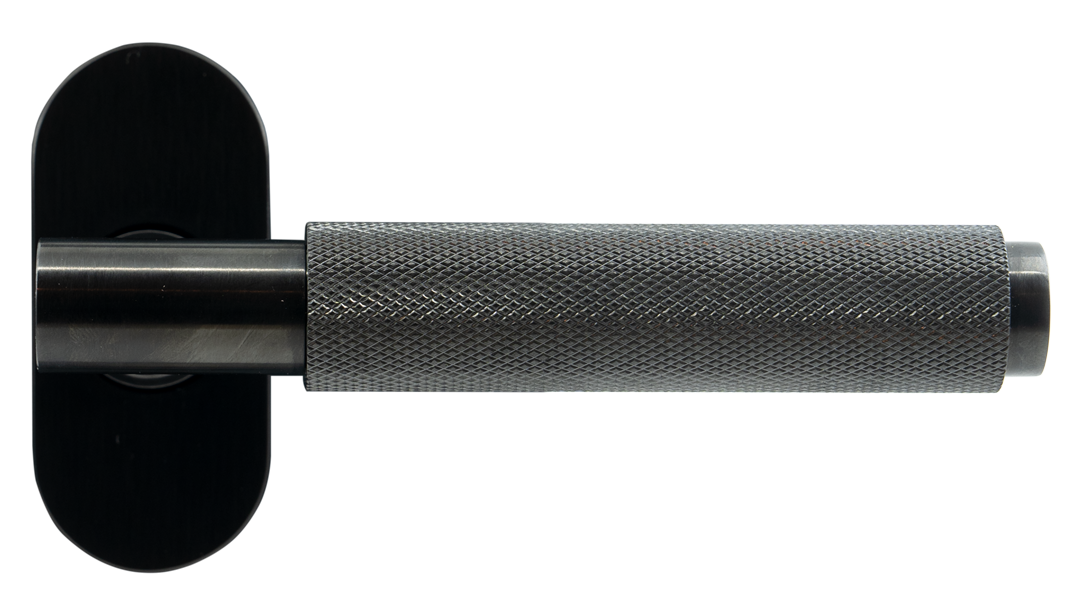

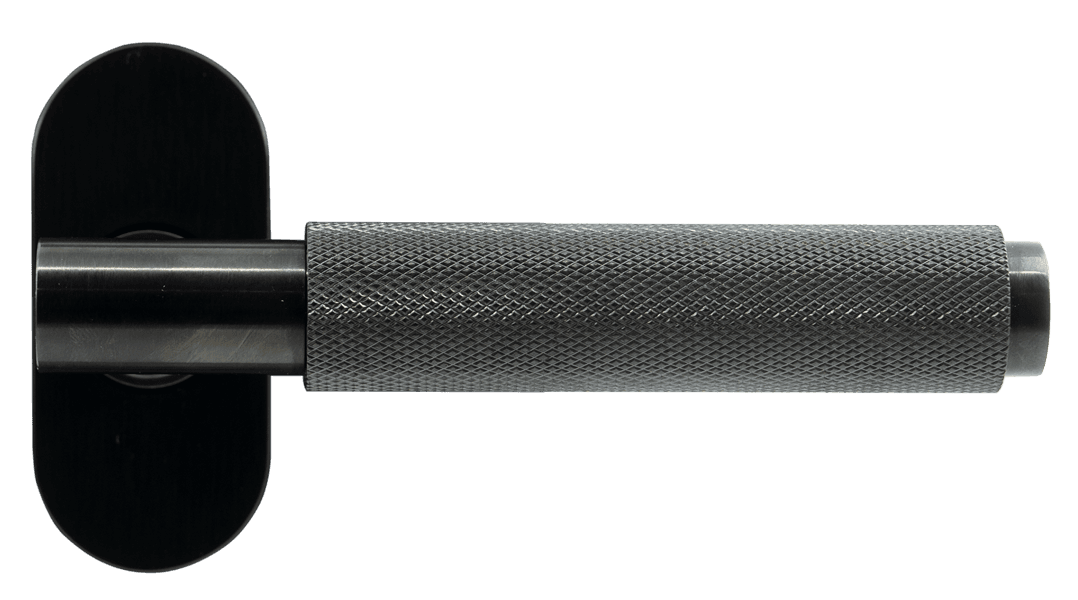

Signature Knurled, Brushed Black
The natural match for a black steel-look frame.

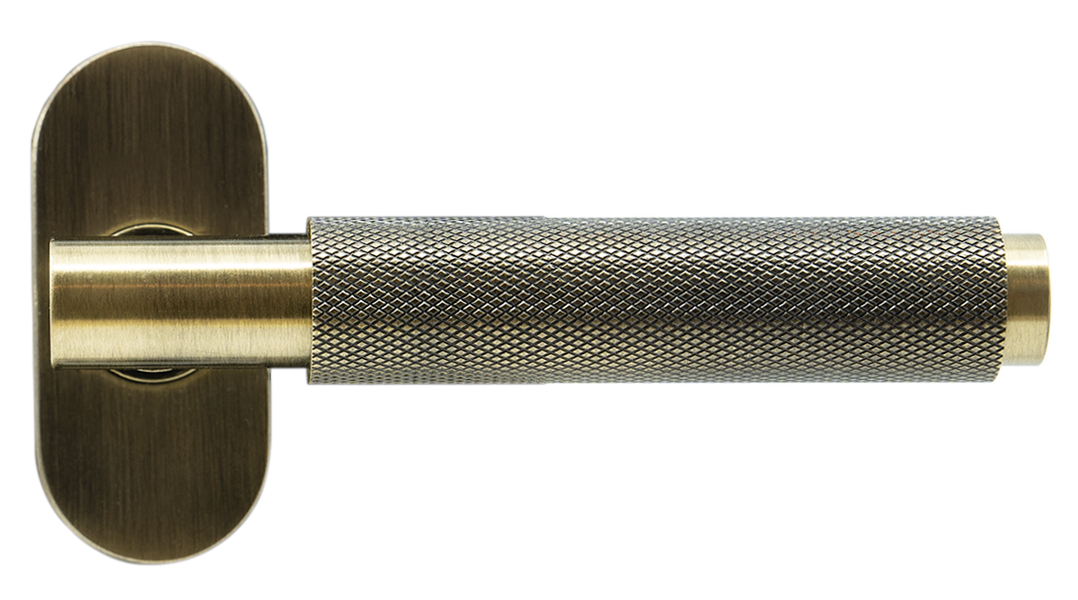

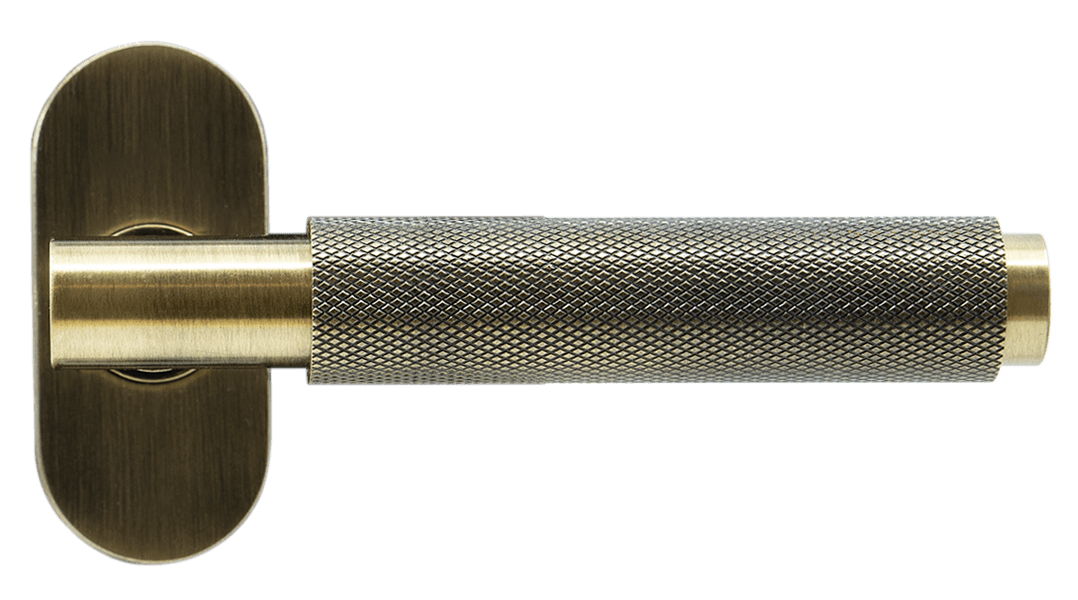

Signature Knurled, Antique Brass
A warm accent against a dark frame.
Get a free quote for Origin OI-30 Internal Door
Free no-obligation written quote. Fast response times. FENSA registered with a 10-year CPA insurance-backed guarantee. Serving Buckinghamshire, Berkshire, Oxfordshire, Surrey, Hampshire, Hertfordshire & West London.
Origin Internal Doors: Frequently Asked Questions
What is the Origin OI-30?
The OI-30 is Origin's aluminium internal door system, designed to give the look of a steel-framed screen. It has a 30 mm frame, 40 mm deep, glazed with 4, 6 or 6.8 mm glass, and comes as single doors, French doors, fixed screens and corner sets. It is used to divide kitchens, living rooms, home offices and hallways while keeping the space light.
What sizes can the OI-30 be made in?
Each door leaf can be 300 to 1,000 mm wide and 1,500 to 2,500 mm tall. A single door frame runs from 346 to 1,046 mm wide and a French door frame from 660 to 2,060 mm. Fixed screens go up to 2,000 mm wide each and can be coupled for longer runs, and frames can be up to 3,048 mm tall.
Is the Origin OI-30 a fire door?
No. Origin states that the OI-30 is not currently fire rated. In most homes an internal glazed door does not need to be, but some layouts do require fire doors, for example on the escape route in a house with a floor more than 4.5 m above ground. We check this at survey, and where a fire-rated door is required we tell you before anything is ordered.
What colours and handles are available?
Jet Black is Origin's stock colour, with more than 150 RAL colours available. Handle collections include Signature Knurled, Contemporary and Heritage, in finishes such as Antique Brass, Satin Brass, Matt Black, Matt Bronze, Satin Nickel and Hammered Pewter, with coordinating hinges and door stops. Origin's Essential handle is a no-cost option.
Can the OI-30 have a lock?
Yes. Turn-and-release locks are available for rooms that need privacy, such as a home office or utility room, and keyed locking is available in Matt Black, Satin Brass and Satin Nickel.
How does the OI-30 compare with a steel internal screen?
The OI-30 gives the slim, black-framed look of steel in aluminium, in more than 150 colours. Our guide at Crittall-Style Doors: Affordable Alternatives Compared compares the steel-look options in more detail.
What guarantee comes with the OI-30?
Origin gives up to a 20-year guarantee on parts (Origin's terms apply). Our installation is backed by our 10-year CPA insurance-backed guarantee.
