What is a U-Value? Window & Door Energy Ratings Explained

Understanding U-values is essential when comparing windows and doors. Whether you are replacing old double glazing, upgrading to triple glazing, or specifying new aluminium entrance doors, the U-value is the single most important number to understand — yet many homeowners never have it explained clearly.

This guide covers exactly what a U-value is, what good looks like, and how to use this figure to make smarter decisions about your glazing.

What is a U-Value?

A U-value (also called a thermal transmittance value) measures how well a building element — a window, door, wall or roof — conducts heat. More precisely, it measures the rate of heat transfer in watts through one square metre of a material for each degree of temperature difference between the inside and outside.

The unit is W/m²K — watts per square metre per Kelvin.

The lower the U-value, the better the thermal insulation. A U-value of 1.0 means the element loses heat at half the rate of an element with a U-value of 2.0.

A Simple Way to Think About It

Imagine it is a cold winter evening. Outside is 0°C and inside your home is 20°C — a difference of 20 degrees. A window with a U-value of 1.2 W/m²K will lose 1.2 × 20 = 24 watts of heat per square metre every hour. A window with a U-value of 2.8 — typical of older double glazing — will lose 56 watts per square metre. The better-insulated window retains more than twice as much heat.

What's a Good U-Value for Windows in the UK?

UK Building Regulations (Approved Document L) set minimum requirements for replacement windows. As of 2022, new replacement windows must achieve a whole-window U-value of 1.4 W/m²K or better, or meet the equivalent energy rating of C.

However, a compliant window is not the same as a good window. Here is how different glazing types compare:

• Single glazing: 4.8–5.5 W/m²K — very poor, most heat lost through glass
• Older double glazing (pre-2002): 2.6–3.0 W/m²K — fails current regulations
• Modern double glazing (A-rated): 1.2–1.4 W/m²K — meets regulations comfortably
• High-performance double glazing: 0.9–1.1 W/m²K — above average
• Entry-level triple glazing: 0.8–1.0 W/m²K — good
• Premium triple glazing: 0.6–0.8 W/m²K — excellent

The Cortizo aluminium windows we install at Vitrum Solutions achieve whole-window U-values as low as 0.77 W/m²K on premium triple-glazed configurations — significantly ahead of UK Building Regulations requirements.

Whole-Window U-Value vs Centre-Pane U-Value

This is where many homeowners — and some less reputable installers — get confused. There are two different U-values you may encounter.

Centre-Pane U-Value

This measures only the thermal performance of the glass unit itself, ignoring the frame. Centre-pane U-values are always lower (better) than whole-window values because glass is a better insulator than most frame materials.

A triple-glazed unit might have a centre-pane U-value of 0.5 W/m²K.

Whole-Window U-Value

This is the figure that matters. It accounts for the glass unit and the frame, including heat loss at the edges of the unit. Because frames — even high-performance aluminium frames with thermal breaks — conduct more heat than the glass unit, the whole-window U-value is always higher than the centre-pane value.

The same triple-glazed unit in an aluminium frame might achieve a whole-window U-value of 0.8–1.0 W/m²K.

Always ask for the whole-window U-value when comparing products. If a supplier only quotes the centre-pane value, ask specifically for the whole-window figure — it tells a very different story.

What Affects a Window's U-Value?

Several factors combine to determine the final U-value of a window.

Glass Coatings (Low-E)

Low-emissivity (low-E) coatings are invisible metallic layers applied to one or more glass surfaces. They reflect long-wave infra-red radiation (heat) back into the room while allowing short-wave solar radiation (light) through. Low-E coatings typically reduce a window's U-value by 0.3–0.6 W/m²K compared to uncoated glass.

Gas Fill

The cavity between glass panes is filled with a gas that slows heat transfer:

• Argon (most common): 34% less conductive than air, reduces U-value by approximately 0.2 W/m²K
• Krypton: 64% less conductive than air, better suited to narrow cavities where argon performs less well
• Xenon: Best performance but significantly more expensive, used in ultra-premium glazing

Cavity Width

The optimal cavity width for argon-filled double glazing is 16–20mm. Narrower cavities allow more heat transfer; wider cavities beyond 20mm start to allow convection currents that reduce performance.

Spacer Bars

The bar separating the two panes at the edge of the unit conducts heat. Traditional aluminium spacers create a thermal bridge — this is why windows often show condensation around the edges in cold weather. Warm-edge spacer bars (made from stainless steel or composite materials) reduce this edge heat loss and improve the whole-window U-value by 0.1–0.2 W/m²K. All modern quality windows use warm-edge spacers as standard.

Frame Material and Profile

The frame has a significant impact on whole-window U-value:

• uPVC frames: Good natural insulator, typical frame U-value of 1.2–1.8 W/m²K
• Aluminium frames (standard, no thermal break): Poor — aluminium is highly conductive
• Aluminium frames (thermally broken): A polyamide barrier inserted through the frame dramatically reduces heat transfer, achieving frame U-values of 1.4–2.2 W/m²K — comparable to uPVC
• Timber frames: Good natural insulator, typically 1.0–1.8 W/m²K depending on species and thickness

This is why it is essential that aluminium windows are specified with a proper thermal break. At Vitrum Solutions, all aluminium systems — from Cortizo to Schuco — use advanced polyamide thermal breaks that meet or exceed current building regulations.

U-Values for Doors

External doors lose heat too, and the requirements are similar. UK Building Regulations require replacement doors to achieve a U-value of 1.4 W/m²K or better.

• Solid composite doors: 1.0–1.3 W/m²K — good insulation due to insulated foam core
• Glazed composite doors (half glass): 1.4–1.8 W/m²K — more heat loss through the glazed section
• Aluminium entrance doors (thermally broken): 1.0–1.4 W/m²K with double glazing
• Steel security doors: 1.0–1.4 W/m²K — Gerda RC3 steel doors typically achieve 1.0 W/m²K

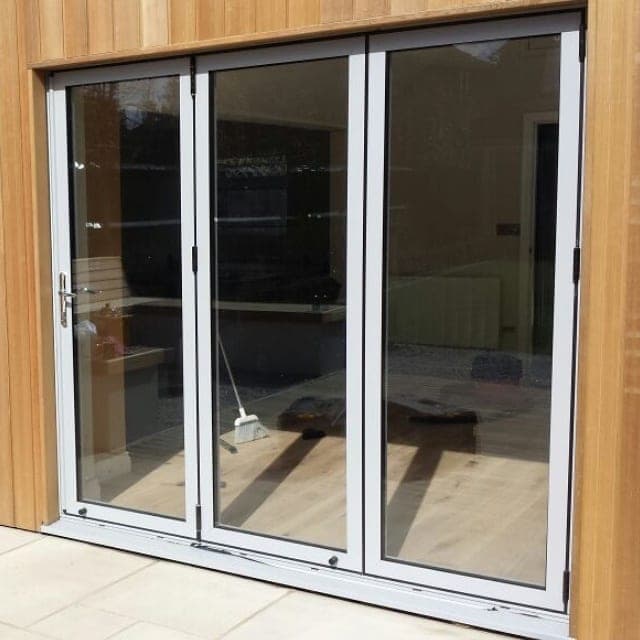

• Aluminium bifold and sliding doors: 1.0–1.4 W/m²K with standard double glazing; 0.8–1.1 W/m²K with triple glazing

The Future Homes Standard and U-Values

The Future Homes Standard is driving significant changes to energy performance requirements in new-build properties. From 2025 onwards, new-build homes are required to achieve window U-values of 1.2 W/m²K or better as part of the requirement to reduce carbon emissions by 80% compared to 2013 Building Regulations.

For replacement windows in existing homes, the current threshold remains at 1.4 W/m²K — but this will tighten as future updates to Approved Document L are implemented. Specifying better than minimum now means your windows remain compliant for longer.

BFRC Ratings: The Energy Label for Windows

The British Fenestration Rating Council (BFRC) operates the Window Energy Rating (WER) scheme, which grades windows from G (poorest) to A++ (best). These ratings account for three factors:

• U-value: Heat loss through the window
• Solar factor (g-value): How much solar heat gain enters through the glass
• Air leakage: How airtight the window is when closed

The BFRC rating is a more complete measure than U-value alone because solar gain partly offsets heat loss. A south-facing window with a higher U-value but good solar factor can perform better in energy terms than a north-facing window with an excellent U-value but low solar factor.

For practical purposes, specifying A-rated windows or above will always meet current Building Regulations and typically achieves a whole-window U-value of 1.4 W/m²K or better.

How to Use U-Values When Comparing Quotes

When getting quotes for new windows or doors, here is how to use U-values effectively:

• Ask for whole-window U-values — not just glass unit or centre-pane figures
• Ask for the full glazing specification — glass coatings, gas fill, spacer bar type
• Check the frame has a proper thermal break if aluminium is specified
• Verify the BFRC rating if available — A-rated means compliant with current regulations
• Compare like for like — U-values vary by window size and configuration, so a value quoted for a large fixed window does not apply directly to a small opening casement

At Vitrum Solutions, every quote includes full glazing specifications. Our surveyors advise on the right U-value for your specific project — whether you need basic compliance or the maximum thermal performance available from triple glazing.

Frequently Asked Questions

What U-value do I need for replacement windows in the UK?

UK Building Regulations require replacement windows to achieve a whole-window U-value of 1.4 W/m²K or better — equivalent to a C rating on the BFRC scale. Most quality modern double-glazed windows exceed this; A-rated windows achieve 1.2–1.4 W/m²K. We recommend targeting A-rated or better for any replacement project.

What is the difference between U-value and R-value?

U-value and R-value are reciprocals of each other. R-value (thermal resistance) is more common in the US; U-value (thermal transmittance) is the UK and European standard. A lower U-value means better insulation; a higher R-value means better insulation. To convert: R = 1/U and U = 1/R.

Does triple glazing always have a better U-value than double glazing?

Yes — all else being equal, triple glazing achieves a lower (better) U-value than double glazing. However, the improvement varies significantly by product. A high-performance double-glazed unit (0.9 W/m²K) can outperform a budget triple-glazed unit (1.0 W/m²K). The frame, spacer bar and glass specification matter as much as the number of panes. Read our full triple vs double glazing comparison for more detail.

How do I find out the U-value of my existing windows?

If your windows were installed after 2002 and have a BFRC label, the U-value will be listed. For older windows without documentation, a rough guide: single glazing is typically 4.8–5.5 W/m²K; pre-2002 double glazing is typically 2.6–3.0 W/m²K; post-2002 double glazing is typically 1.6–2.2 W/m²K. Modern A-rated double glazing is 1.2–1.4 W/m²K.

Is a lower U-value always better?

For thermal insulation, yes — a lower U-value means less heat loss. However, very low U-values come at additional cost and, for glazing, usually mean more panes and thicker units. The right specification depends on your budget, window orientation, and priorities. A good installer will advise on the right U-value for your project rather than defaulting to the most expensive option.
